See It In Action3D printing has revolutionised industries. This is because it enables rapid prototyping and manufacturing with unparalleled customisation. Many people may be familiar with standard 3D printing. This is often used for hobbyist projects, product design, and industrial prototyping. But in recent years, a more advanced form of this technology is emerging: Micro 3D printing. Offering much higher levels of precision, this technique operates at the micron and even nanometre scale. This makes it an essential tool in fields such as medicine, electronics, aerospace, and pharmaceuticals.

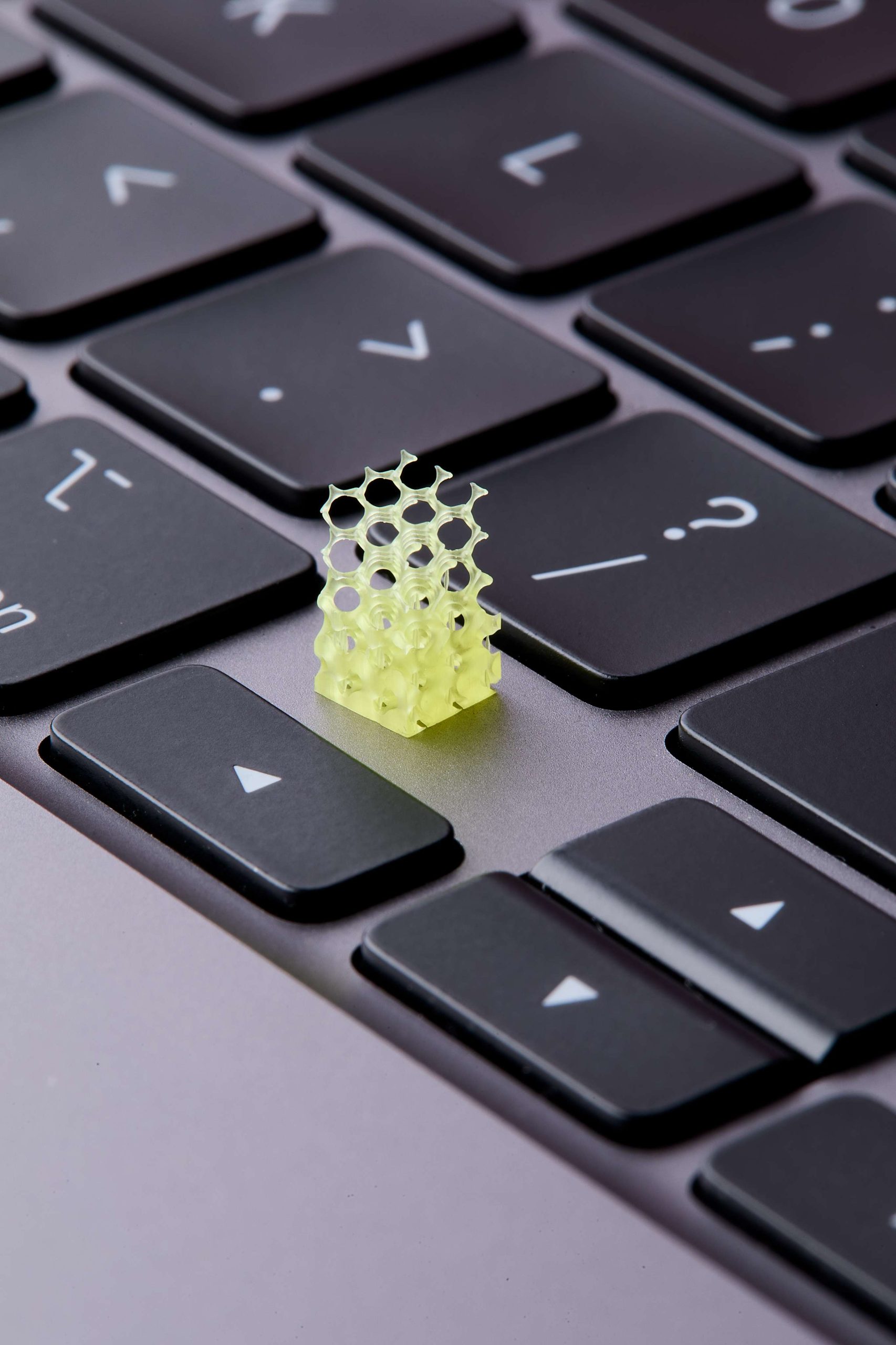

Micro 3D printing is a specialised form of additive manufacturing. It’s designed to create extremely small and highly detailed objects. Conventional 3D printing typically produces objects with layer resolutions ranging from 50 to 200 microns – between the thickness of a single human hair to the size of a single large coffee ground. Micro 3D printing can achieve resolutions as small as 2 microns. This level of precision allows for the fabrication of intricate structures. Such structures would be impossible to create using traditional manufacturing techniques like injection moulding or CNC machining.
Several industries have particularly useful applications for micro 3D printing. These are where miniaturisation, precision, and material complexity are crucial. Applications in the medical field include tiny implants and lab-on-a-chip devices. Industrial uses can include microscale optics and high-performance microelectromechanical systems (MEMS). Micro 3D printing has the ability to manufacture at a previously unattainable level of detail. This is pushing the boundaries of what is possible in various scientific and industrial sectors.
Micro 3D printing relies on specialised technologies. They differ significantly from traditional FDM (Fused Deposition Modelling) or SLA (Stereolithography) printers. These are the types commonly found in hobbyist workshops. One of the most advanced micro 3D printing methods is Micro-Stereolithography (Micro-SLA). This is a scaled-down, precision version of standard SLA that uses a focused UV laser to cure photosensitive resins. A variant of this, Projection Micro-SLA (PµSL), increases speed by curing entire layers at once rather than tracing individual points.
Another approach is Two-Photon Polymerization (TPP). This uses an ultrafast laser to cure a liquid photopolymer resin at a precision down to the nanoscale. This method is widely used for biomedical applications, micro-optics, and MEMS components.
Electrohydrodynamic Jet Printing (EHD) allows for the deposition of conductive and functional materials. This makes it ideal for printed electronics and micro-circuit fabrication. Micro-Selective Laser Sintering (Micro-SLS) is used for micro-metal fabrication. It uses a high-powered laser to sinter fine metal powders. It’s well-suited to creating robust micro-components for aerospace and defence applications.
These advanced techniques make micro 3D printing an incredibly versatile tool for high-precision manufacturing. The choice of process depends on the specific requirements of an application. These can be factors such as material properties, resolution, and speed.
Micro 3D printing is being adopted across many high-tech industries. Each can benefit from its ability to create complex, miniaturised structures.
In medicine and biotechnology, micro 3D printing is used for many key applications. These include medical implants, microfluidic devices, and drug delivery systems. Microfluidic chips, (also known as lab-on-a-chip devices) allow small amounts of liquids to be manipulated with extreme precision. This enables rapid medical diagnostics and testing. These chips are crucial in fields like DNA sequencing, cancer research, and personalised medicine. Similarly, micro 3D printing is used to manufacture custom scaffolds in biocompatible materials for tissue engineering. This enables cells to grow and regenerate damaged tissues.
The optics and photonics industry uses micro 3D printing for the fabrication of key components. These can be microlenses, optical waveguides, and photonic crystals. These components are essential in LiDAR systems, AR/VR headsets, and high-performance cameras. The ability to create these components is a game-changer for developing next-generation imaging and sensing technologies.
In electronics and MEMS, micro 3D printing is used to manufacture miniaturised circuits, micro-sensors, and actuators. Traditional semiconductor fabrication methods can be costly and time-consuming. Micro 3D printing allows rapid prototyping of MEMS devices. These are found in smartphones, medical devices, and aerospace instruments. Micro 3D printing is allowing significant strides in the development of flexible electronics. These include areas such as wearable sensors and implantable medical devices.
The aerospace and defence industries are adopting micro 3D printing to create lightweight, high-strength components. Micro-thrusters power the latest satellites and micro-drone designs. Parts made at the micro scale offer new potential for aerospace systems. These can include things such as heat exchangers and precision mechanical components.
Even the luxury goods sector is adopting micro 3D printing. This is especially the case for high-precision watch components and intricate jewellery designs. Micro 3D printing can create complex geometries and micro-engraved details. This allows for customised product designs. These would be nearly impossible with traditional manufacturing methods.
Due to its extreme precision, micro 3D printing can be slower than conventional 3D printing. A typical consumer-grade 3D printer may take a few hours to complete a moderately detailed object. A micro 3D print can take up to several days for the most demanding jobs. However, this does depend on the resolution, material, and complexity of the object. Simple prints using rapid methods and fast-curing materials may only take a matter of minutes.
For example, a simple microfluidic chip might be completed in under an hour using Projection Micro-SLA. A high-resolution biomedical scaffold using Two-Photon Polymerization could take up to two days. This is due to the need for nanoscale precision. Metal-based micro-printing techniques such as Micro-SLS may also take several hours to a full day. This is because of production rates imposed by the high-powered laser sintering process.
Micro 3D printing relies on specialised materials. It requires materials that offer high precision and specific mechanical properties. Photopolymer resins are the most common. These are widely used in medical, optical, and microfluidic applications. Some resins are biocompatible, allowing for implants and medical devices. Others are formulated for high-temperature resistance, making them suitable for micro-electronics and MEMS.
For applications requiring metal components, Micro-SLS technology is used. This prints with stainless steel, titanium, and nickel alloys. These are commonly found in aerospace and high-performance mechanical systems. Conductive inks and nano-metals, such as silver nanoparticles and gold, are used for electronics and printed circuit components.
Ceramic-based materials are also used in micro-optics and high-temperature electronics. These can include silicon dioxide, zirconia, and alumina. These materials offer superior thermal stability and mechanical strength. All of which makes them ideal for demanding industrial applications.
Micro3D by IPFL uses a wide variety of materials including carbon filled BMF tough for high opacity applications, 3D systems Hi-Temp 300 AMB, BMF BIO and RG for biocompatibility requirements and microfluidics and Loctite MED3394.
Micro 3D printing provides several advantages over traditional manufacturing techniques. This includes established processes like injection moulding, CNC machining, and lithography. One of its biggest benefits is the ability to create highly intricate geometries with precision. These would otherwise be impossible with conventional techniques.
Another key advantage is rapid prototyping which can rapidly scale to production. This has been a major benefit of additive manufacturing, and micro 3D printing brings this to new areas. Traditional methods of producing micro-scale components often involve costly and time-consuming tooling. Micro 3D printing eliminates the need for moulds or masks, reducing both lead times and production costs. This makes it easier for researchers and engineers to test and iterate designs quickly.
Micro 3D printing also supports mass customisation. It can enable the production of patient-specific medical implants and personalised micro-optics. In other fields, it can produce custom-designed MEMS devices for specific and one-off applications. This flexibility is crucial in industries where tailored solutions improve performance and functionality.
Micro 3D printing is an emerging technology, and one that is transforming industries requiring ultra-precise manufacturing. Its applications are vast and continually expanding. From medical devices and microfluidics to aerospace components and MEMS sensors. The unparalleled resolution and complexity it offers make it an essential tool for the future of manufacturing. As material science and printing technology advance, Micro 3D printing will continue to push boundaries of innovation across many high-tech fields.
